Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications

Temel bilgi

Menşe yeri:	Şangay, Çin
Marka adı:	Daesum

Min sipariş miktarı:	1
Fiyat:	$28,000-30,000

En iyi fiyat Şimdi başvurun

Makine kapasitesi:	8BPH	Doğruluk doldurma:	±%0.2 FS
Ağırlık:	1500 kg	Voltaj besleme:	415/220, 1/3fase, 50/60Hz
Çıkış hızı:	50-60 davul/saat	Davul boyutu:	50L'den 1000L'ye
Doldurma modu:	Hızlı ve salya dolgu ile sıvı seviyesinin üstünde veya altında	Konteyner şekli:	Yuvarlak IBC tankı, kova, davul veya diğerleri
Tambur malzemesi:	Plastik ve Metal Kap	Çekirdek bileşenler:	Motor, PLC, Dişli, Rulman, Şanzıman, Motor
Kontrol sistemi:	Almanya Siemens/Japonya Omron PLC	Dolum malzemesi:	Yağ, sıvı
Yapı Malzemesi:	Paslanmaz Çelik veya Çinko Boyalı Kaplama	Yük hücresi:	Ağır hizmet tipi ağırlık platformuna monteli tekli
Muhafaza malzemesi:	Paslanmaz Çelik 304
Vurgulamak:	High Accuracy IBC Filling Machine , Customizable Pallet Filling Machine , 1 Year Warranty Automatic Filling Machine

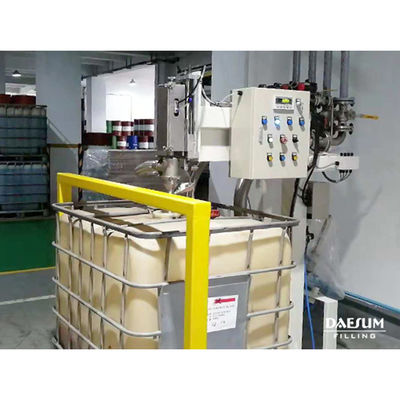

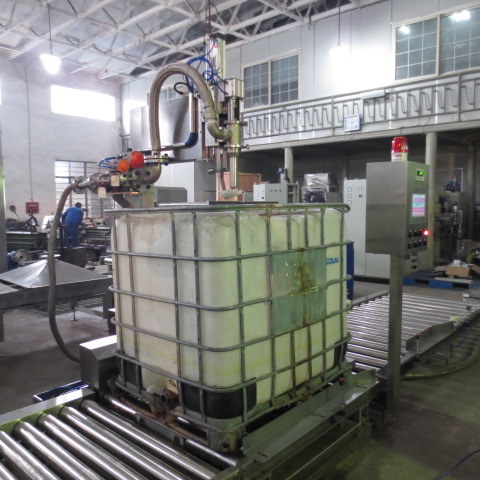

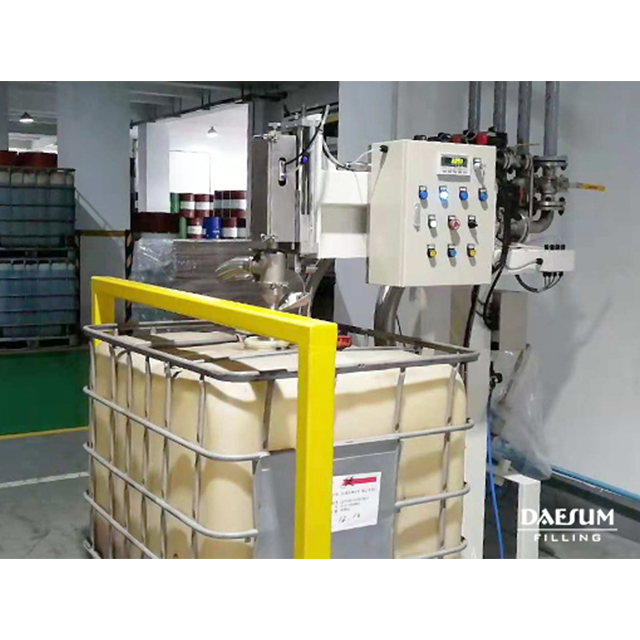

Automatic IBC Filling Machine

This filling machine is suitable for containers from 50L to 1000L and can be manually adjusted via touch screen.

Product Application

Designed for free-flowing to viscous products, including chunky products. Fill volumes range from 50L to 1000L at high flow rates with accuracies up to ±0.2%, depending on drum size and product type.

Technical Specifications

Feature	Specification
Product Compatibility	Free flow to high viscosity
Output Speed	50-60 drums/hour (dependent on drum size and product type)
Container Shape	Round IBC Tank, pail, drum or others
Drum Material	Plastic & Metal container
Drum Size	50L to 1000L
Voltage Supply	415/220, 1/3Phase, 50/60Hz
Filling Accuracy	Class X (0.5) (0.2%)
Filling Mode	Above or under liquid level with fast & dribble fill

Custom configurations are available according to customer requirements.

Type of Build

Stainless Steel or Zinc Painted Finish
Performs debunging, filling, bunging, clinching, stenciling, and palletizing in a compact area with minimal operator requirements

Filling System Features

No product spillage onto clean drums with hood cover under nozzle
Manual/Net/Gross filling with auto two-stage fast & dribble fill
Quick-release, fast interchangeable lance for easy maintenance (SS316 straight pipe)
Top/Low Fill with auto-lowering lance assembly and hood cover
METTLER TOLEDO brand weight scaler with digital display
Heavy-duty weighting platform with single load cell and overload protection
Powered or gravity-fed pallet conveyor system (2x2 configuration)
Spring-assisted nozzle closure during power failure
Stainless steel 304 enclosure with front viewing Perspex cover
Safety interlock for nozzle closure before lance withdrawal
IP55 class control cabinet for weighing indicator and pneumatic components
